Aplicom A9 IPEX

Aplicom A9 IPEX

Rugged telematics unit

Aplicom A9 IPEX are your choice for demanding environments, like trailers and heavy machinery. They are also a popular platform for telemetry in stationary vending machines.

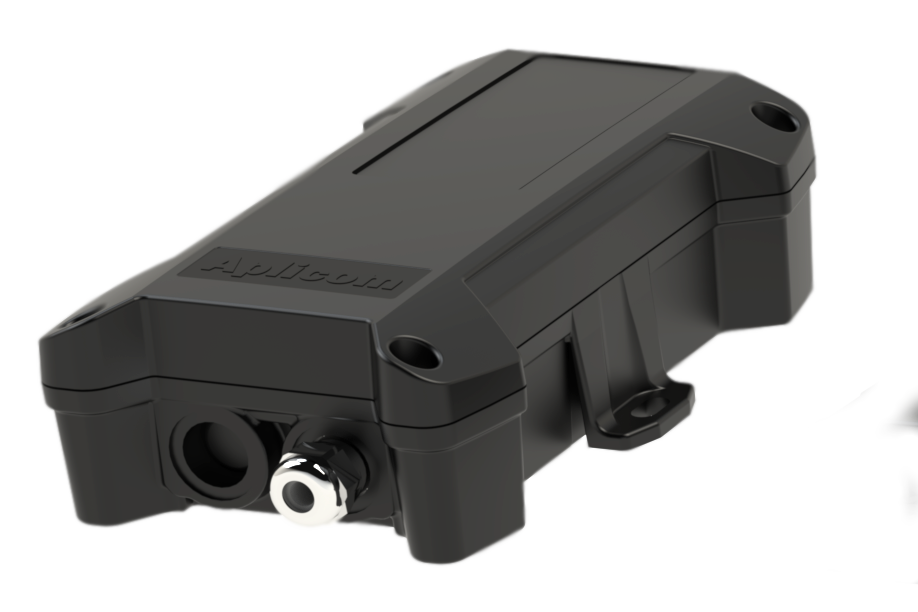

Aplicom A9 IPEX devices are water and dust proof according to IP 67 standards. They are housed in robust enclosures with thick walls, that are shaped to withstand stress. All antennae are internal and all physical connections exit the unit through one combination cable.

Aplicom A9 IPEX is an ideal platform for trailer telemetry and tracking. The internal 4000 mAh battery enables operation without external power, and the CAN interface supports trailer EBS data interfaces.

Getting started with Aplicom A9 IPEX is as quick and easy as it can be. Create solutions for the unit with the Aplicom A-Series Software configurator tool, and integrate them into your system over a REST API that is offered by Aplicom Data Service. No programming needed!

If your solution has special requirements, Aplicom can design a customized solution. You can also develop your own software for the unit, with our professional support.

Custom hardware options can be also provided, since the unit has extra internal space capable of housing custom application modules.

The Aplicom A9 IPEX has an internal communication module, GNSS positioning module, real-time clock, and an accelerometer.

Data interfaces are:

– 1 x CAN bus
– 1 x serial port
– 2 x multi-purpose input
– 1 x OC/digital output
– 1 x1 wire input

The multi-purpose input can act as analogue, or digital input, or pulse counter.

Aplicom A9 IPEX units include custom-selectable options, including COMM port, CAN, FMS CAN, CAN ID, EBS and digital tachograph connectivity. Customized functionality also includes CAN protocol support. Other CAN-based solutions can be provided.

Aplicom Over-the-Air management tools enable remote management of device software and configurations.

Aplicom A9 IPEX has an internal 2G/3G communication module. A version with a 2/4G LTE Cat 1 option will be available in Q4/2020.

Contact us to find out more.
